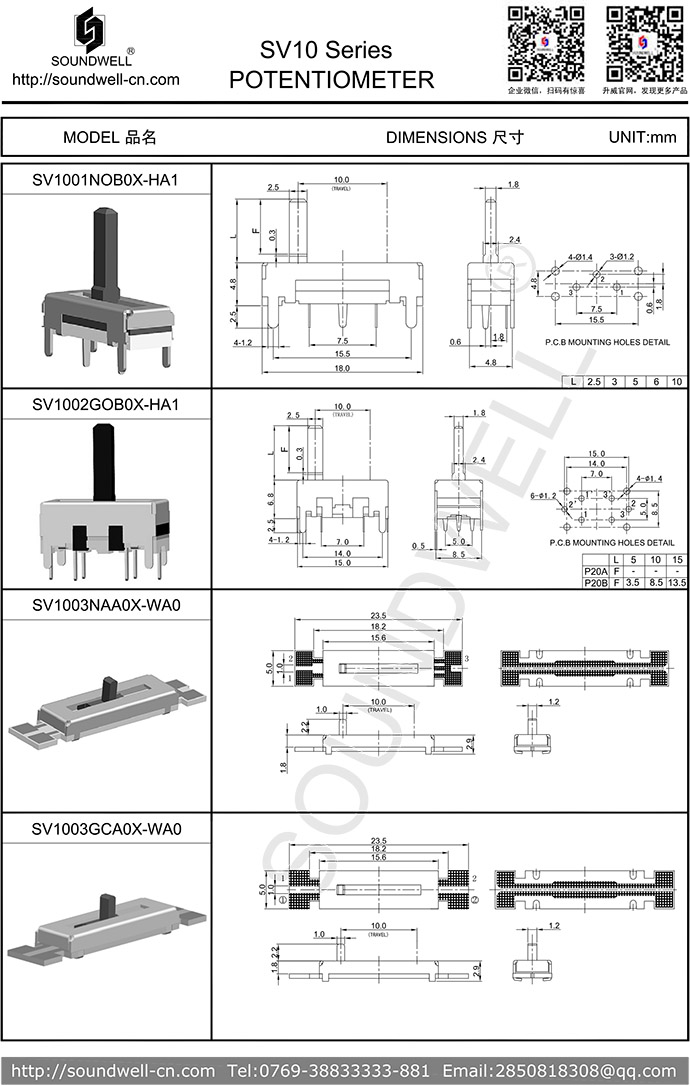

| Potentiometer model： | SV10 series |
| Name： |
10mm Mini SMD Slide Potentiometers |
| Main Specifications: | Travel: 10mm； Resistance Tolerance: ±20%； Rated power: 0.05W； Operating temperature: -10℃~70℃； Operating life: 5,000 Min； |
| Product Features： |
Small size with high precision; |
| Applications： |
Volume control for headphones, mini audio devices, radios and other electronic products. |
ONE、MECHANICAL CHARACTERISTIC
1. Operating force: 10~200gf.cm
2. Slide Travel: 10±0.5mm
3. Lever Stop strength: 3Kgf
4. Lever Wobble: 2(2XL/25)mmp-p
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: B
3. Power Rating: 0.05W
4. Insulation Resistance: 100 MΩ 1 Min at DC 250V
5. Dielectric Voltage: 1 Minute at AC100V
THREE、ENDURANCE CHARACTERISTIC
1. Operating Life: 5,000 Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
